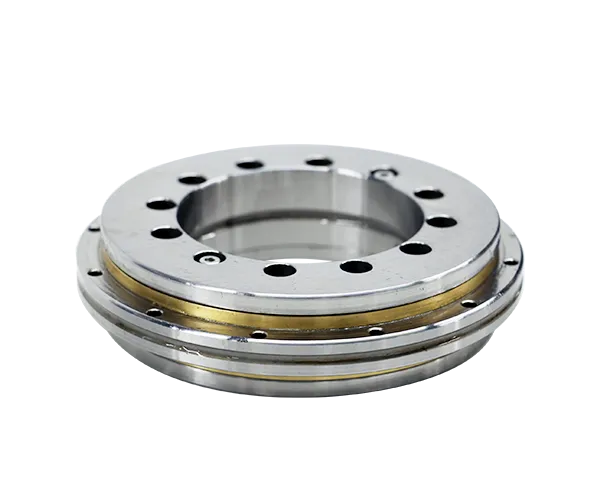

A Manufacturer Specializing in the Production of Rotary Table Bearings in China

01. Design

The first step is to design the rotary table bearing according to the specific requirements and intended application. This involves determining the size, load capacity, rotational speed, and precision needed. CAD (Computer-Aided Design) software is commonly used to create the design, considering factors such as the arrangement of rolling elements, raceway geometry, and lubrication.

02. Material Selection

Once the design is finalized, suitable materials are selected for the different components of the rotary table bearing. The choice of materials depends on factors such as load capacity, durability, and environmental conditions. Common materials used include high-quality steel for the rings and rolling elements, as well as synthetic materials for seals and retainers.

03. Manufacturing the Rings

The inner and outer rings of the rotary table bearing are typically manufactured through processes like forging, turning, or grinding. These processes help achieve the required dimensions, surface finish, and accuracy. Heat treatment may also be applied to enhance the strength and hardness of the rings.

04. Rolling Elements

The rolling elements, such as balls or rollers, are manufactured separately using specialized machines or processes like precision grinding or cold heading. These processes ensure the rolling elements meet the required dimensions and tolerances.

05. Assembly

In this stage, the inner and outer rings, rolling elements, and other components like seals and retainers are assembled together. The rolling elements are positioned between the rings, and the seals and retainers are installed to provide protection and guidance for the rolling elements.

06. Lubrication

Lubrication is essential to reduce friction and wear within the bearing. The appropriate lubricant is selected based on factors such as load, speed, and operating conditions. The lubricant is applied to the bearing during assembly, ensuring proper coverage and distribution.

07. Quality Control

Throughout the production process, quality control measures are implemented to ensure the rotary table bearings meet the required standards. This includes dimensional inspections, surface quality checks, hardness testing, and functional testing to verify smooth rotation and load-carrying capacity.

08. Packaging and Delivery

Once the rotary table bearings pass the quality control checks, they are packaged and prepared for shipment to customers or assembly lines.
