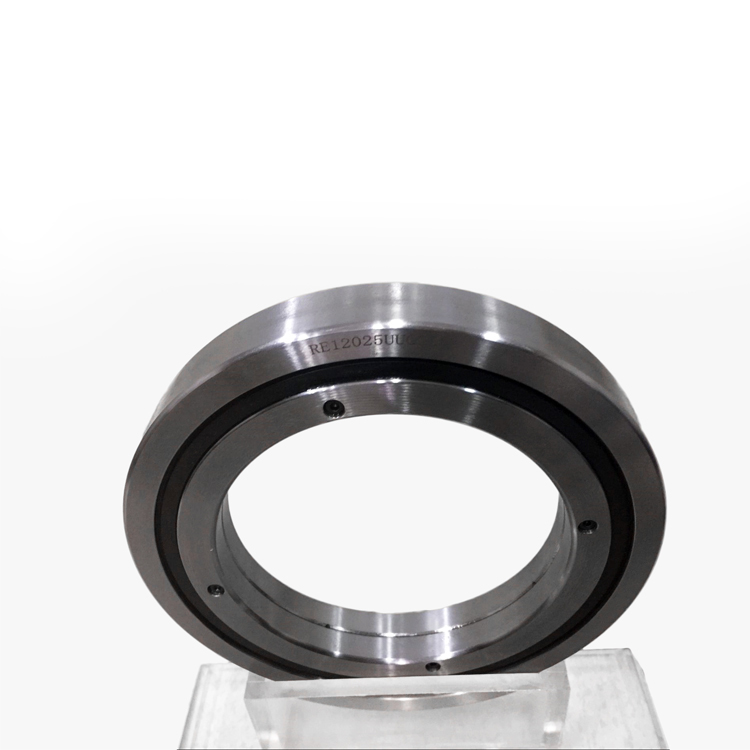

BRE Series Cross Roller Bearings

BRE series crossed roller bearing is a new type of bearing developed based on the design concept. Compared with the BRB type, the main dimensions of the BRE series are the same, but they are different in structure. The inner ring of BRE series crossed roller bearing is split type, and the outer ring is integral type, which is suitable for mechanical equipment with high precision requirements on the outer ring.

Email: byc@lybybearings.com

Mobile: +86 17395972198

REQUEST FOR QUOTE >

Product Parameter Product Description

BRE series cross roller bearing parameters

Shaft Diameter(mm)	Model Number	Main Dimensions (mm)						Shoulder Height		Basic Load Rating(radial)		Weight


		Inner Ring d (mm)	Outer Ring (mm)	Roller Pitch Circle Diameter(dp)	Width(BB1)BB1	Hole	Chamfer r(min)	ds(mm)	Dh(mm)	c kN	Co kN	Kg



40	BRE4010	40	65	53.5	10	1.5	1	47.5	58	8.33	10.6	0.16
45	BRE4510	45	70	58.5	10	1.5	1	51	61.5	8.62	11.3	0.17
50	BRE5013	50	80	66	13	1.5	1	57.5	72	16.7	20.9	0.27
60	BRE6013	60	90	76	13	1.5	1	68	82	18	24.3	0.3
70	BRE7013	70	100	86	13	1.5	1	78	92	19.4	27.7	0.35
80	BRE8016	80	120	101.4	16	1.5	1	91	111	30.1	42.1	0.7
90	BRE9016	90	130	112	16	1.5	1.5	98	118	31.4	45.3	0.75
100	BRE10016	100	140	121.1	16	1.5	1.5	109	129	31.7	48.6	0.83
100	BRE10020	100	150	127	20	1.5	1.5	113	133	33.1	50.9	1.45
110	BRE11012	110	135	123.3	12	1.5	1	117	127	12.5	24.1	0.4
	BRE11015		145	129	15	1.5	1	122	136	23.7	41.5	0.75
	BRE11020		160	137	20	1.5	1.5	120	140	34	54	1.56
120	BRE12016	120	150	136	16	1.5	1	127	141	24.2	43.2	0.72
120	BRE12025	120	180	152	25	2	2	133	164	66.9	100	2.62
130	BRE13015	130	160	146	15	1.5	1	137	152	25	46.7	0.72
130	BRE13025	130	190	162	25	2	2	143	174	69.5	107	2.82
140	BRE14016	140	175	160	16	1.5	1.5	147	162	25.9	50.1	1
140	BRE14025	140	200	172	25	2	2	154	185	74.8	121	2.96
150	BRE15013	150	180	166	13	1.5	1	158	172	27	53.5	0.68
	BRE15025		210	182	25	2	2	164	194	76.8	128	3.16
	BRE15030		230	192	30	3	2	173	210	100	156	5.3
160	BRE16025	160	220	192	25	2	2	173	204	81.7	135	3.14
170	BRE17020	170	220	196.1	20	1.5	2	184	198	29	62.1	2.21
180	BRE18025	180	240	210	25	2	2	195	225	84	143	3.44
190	BRE19025	190	240	219	25	1.5	1.5	202	222	41.7	82.9	2.99
200	BRE20025	200	260	230	25	2	2.5	215	245	84.2	157	4
	BRE20030		280	240	30	3	2.5	221	258	114	200	6.7
	BRE20035		295	247.7	35	3	2.5	225	270	151	252	9.6
220	BRE22025	220	280	250.1	25	2	2.5	235	265	92.3	171	4.1
240	BRE24025	240	300	272.5	25	2	3	256	281	68.3	145	4.5
250	BRE 25025	250	310	280.9	25	2	3	268	293	69.3	150	5
	BRE 25030		330	287.5	30	3	3	269	306	126	244	8.1
	BRE25040		355	300.7	40	3.5	3	275	326	195	348	14.8
300	BRE 30025	300	360	332	25	2	3	319	344	75.7	178	5.9
	BRE 30035		395	345	35	3	3	322	368	183	367	13.4
	BRE 30040		405	351.6	40	3.5	3	326	377	212	409	17.2
350	BRE 35020	350	400	376.6	20	1.5	3	363	383	54.1	143	3.9
400	BRE40035	400	480	440.3	35	3	3.5	422	459	156	370	14.5
400	BRE40040	400	510	453.4	40	3.5	3.5	428	479	241	531	23.5
450	BRE45025	450	500	476.6	25	1.5	1.5	464	484	61.7	182	6.6
500	BRE 50025	500	550	526.6	25	1.5	1.5	514	534	65.5	201	7.3
	BRE50040		600	548.8	40	3	3.5	526	572	239	607	26
	BRE 50050		625	561.6	50	3.5	3.5	536	587	267	653	41.7
600	BRE 60040	600	700	650	40	3	4	627	673	264	721	29

BRE series crossed roller bearing introduction

In the RE series crossed roller bearings, spacers are installed between vertically arranged rollers, which can prevent the rollers from tilting and rubbing against each other, thereby reducing the rotational moment. At the same time, since the inner ring (or outer ring) adopts a two-stage structure, the clearance of the bearing can be adjusted. Even under preload, RE series crossed roller bearings can still achieve high rotational performance.

The crossed roller bearing with this design concept has the characteristics of high precision, reduced rotational moment and adjustable bearing clearance. It is suitable for applications requiring high precision, low friction and high rotational performance.

Application Field

Machine tools: BRE series crossed roller bearings are widely used in various machine tools, including CNC machine tools, milling machines, lathes, grinding machines, etc. They are used to support and carry the rotary motion of the main shaft, table, slide table and other components, providing high precision and high rigidity support.

Robot joints: Due to the high rotational accuracy and rigidity of BRE series crossed roller bearings, they are often used in the joints of industrial robots. These joints need to rotate quickly and precisely to enable the robot's multi-axis motion and flexibility.

Cameras: Crossed roller bearings play an important role in cameras and camera systems. They are used to support and stabilize the rotational movement of the camera module, ensuring that the camera can focus and capture images accurately.

Medical equipment: BRE series crossed roller bearings are also widely used in the field of medical equipment, such as medical imaging equipment, surgical instruments, etc. They are used to support and hold rotating parts of medical equipment, ensuring the accuracy and reliability of the equipment.

Installation Method

Preparations before installation

Cleaning parts: Make sure that parts such as the base of the bearing are clean, and remove impurities or dirt that may affect the bearing installation.

Check the seat: Carefully inspect the seat of the bearing to make sure there are no problems that could interfere with the bearing installation process.

Installation process

Lay the bearing across the base: Lay the crossed roller bearing across the base so that it is aligned with the plane of the base.

Tap the Bearing: Using a small plastic hammer, tap the bearing diagonally to install it into the base with slow and even force. This tapping pattern helps the bearing to slide smoothly into the seat.

After the installation is complete

Inspect the bearings: After installation, rotate the bearings to check for any damage or abnormalities. Pay attention to the smoothness of the rotation and whether there is any abnormal sound.

Confirm the installation quality: By observing the rotation and operation of the bearing, confirm whether the installation is completed smoothly and there is no problem.
